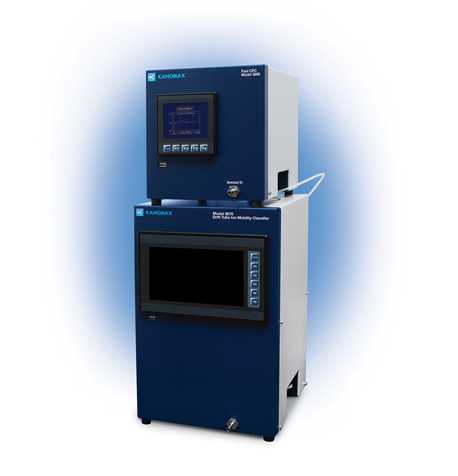

Drift Tube Ion Mobility Spectrometer Model 3006

Kanomax FMT’s Drift Tube Ion Mobility Spectrometer (DTIMS) provides ultrafast-response and highly resolved power size distribution measurements for large molecules and particles from sub-2 to 40 nm.

The DTIMS has two components:

• Drift Tube Ion Mobility Classifier Model 3670 (DTIMC) to size-select the particles.
• Fast Condensation Particle Counter Model 3650 (FastCPC) to count the particles.

The unique aspirating drift tube design of the ion mobility classifier allows the DTIMC to classify a defined “sample volume” of aerosol particles based on temporal separation of mobility. This significantly shortens the measurement time as compared to the time needed for conventional spatial-separation classifiers, such as the Differential Mobility Analyzers (DMA). By coupling the DTIMC (Model 3670) with the FastCPC (Model 3650) with a response time constant < 20 msec, the DTIMS provides best in class size distribution measurements that are as fast as < 10 sec for sub-10 nm, and 60s for < 40 nm particles.

With its ultrafast response and high-resolution measurement, DTIMS is ideal for:

• Fast throughput of colloidal sample analysis in the gas phase
• Characterization of dynamic aerosol systems, such as nucleation or combustion processes
• Tandem electrical mobility measurements, such as DMA-DTIMS
